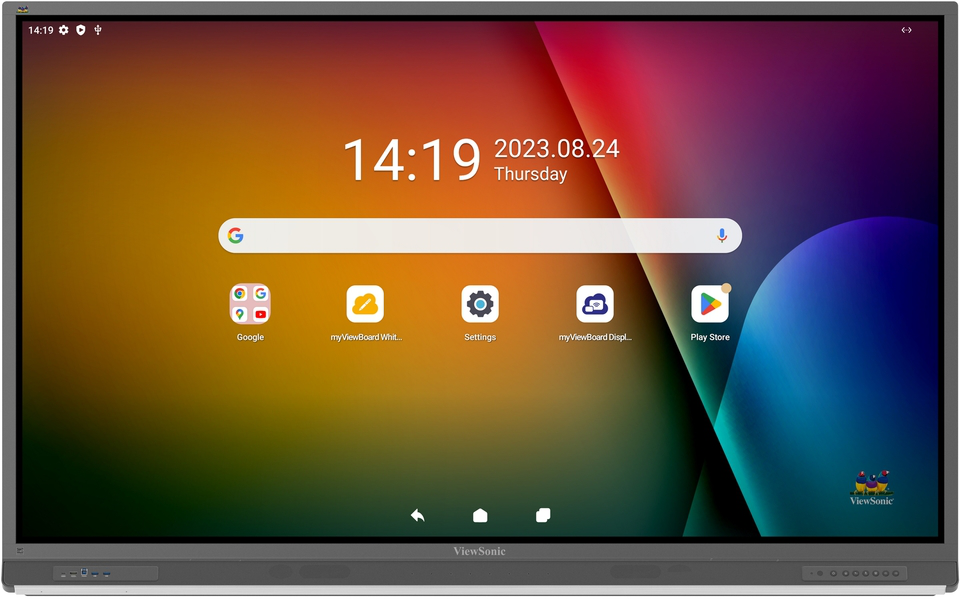

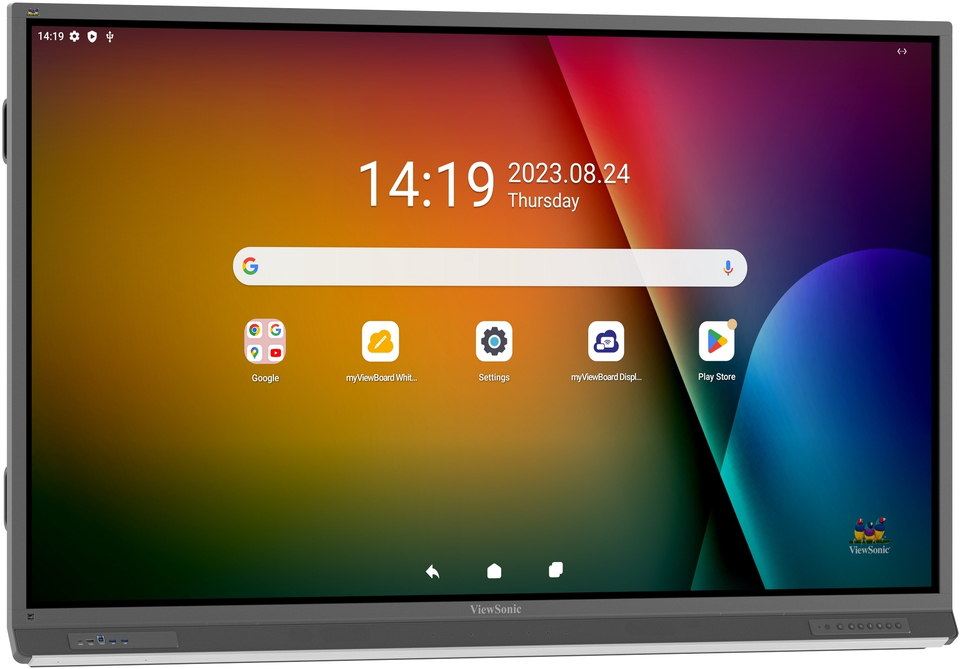

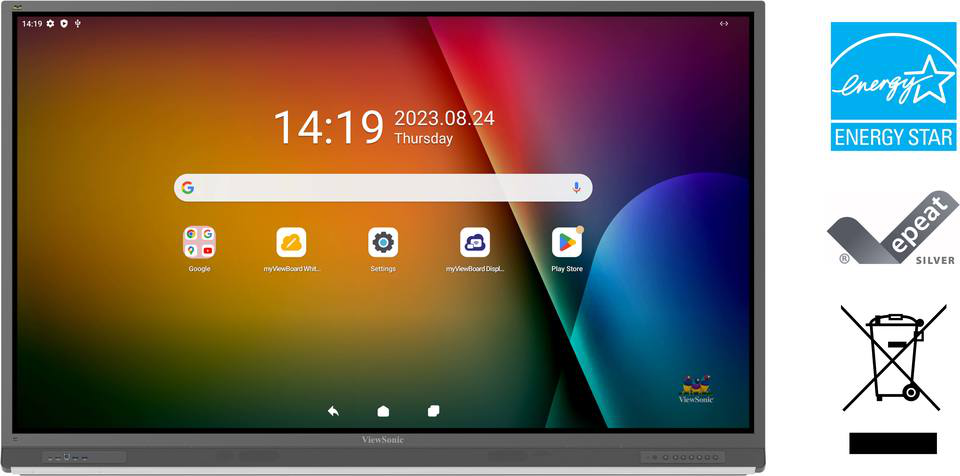

Viewsonic ViewBoard IFP7552-2F

Panel Boyutu: 75"
Panel Türü: TFT LCD Module with DLED Backlight, IPS
Görüntü Alanı (mm): 1650.24 (H) x 928.26 (V) (74.5” diagonal)
En Boy Oranı: 16:9
Çözünürlük: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Parlaklık: 450 nits
Kontrast Oranı: 1200:1(Typ.) 12000:1(with DCR enabled)
Tepki Süresi: from ≤7ms to ≤6ms
İzleme Açıları: H = 178, V = 178 typ.
Arka Aydınlatma Ömrü: 50,000 hrs (typ).
Yüzey Kaplama: Glass Anti-Glare + Anti-Fingerprint 7H Mohs (9H pencil)
Yön: Landscape

İşlemci: Octa-Core CPU (A73*4 + A53*4)
RAM: 8GB
Depolama: 64GB

Tip/ Teknoloji: UFT (Ultra Fine Touch) Technology
Dokunmatik Çözünürlük: 32767 x 32767
Dokunmatik Nokta: Windows: 40 points touch, Android: 20 points touch

HDMI: x3 ( Frontx1:HDMI2.0 with CEC ; Rearx2:HDMI2.1 with CEC/ARC & HDMI 2.0 with CEC)
RGB / VGA: x1
DisplayPort: x1
Ses: x1 (PC audio in)
RS232: x1
OPS: module slot x 1

HDMI: x1
Ses: x1 (Earphone out)
SPDIF: x1

RJ45​: x2

Tip A: USB3.0 x 4 (Front x 2; Rear x 2 )
USB 2.0x1 (Rear)
Tip B: USB 3.0 x3(Front x1; Rear x 2)
Tip C: x3 (Front x1 with USB3.0, DP1.2, Ethernet 100M, PD 65W; Rear x1 with USB3.0, DP1.2, Ethernet 100M, PD 100W; Rear x1 with USB3.0 data only)

20x2+20W

built-in 8-array microphone

Yes

Android 13

Temel Not Alma Yazılımı: myViewBoard WhiteBoard for Android
Profesyonel Not Alma Yazılımı: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: myViewBoard Display, vCast

All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
IFP ve slot cihaz arasında kolay LAN paylaşımı: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes

Voltaj: 100-240VAC +/- 10% Wide Range
Tüketim: 124.06W (Energy Star) / Off: <0.5W

Duvara Monte (VESA® ): 600 x 400

Sıcaklık (º C): 0°C to 40°C
Nem: 20% ~ 80% RH non-condensing

Fiziksel (inç / mm): 1724.96 x 1073.96 x 121.37 mm / 67.912 x 42.282 x 4.778 in
Paket (inç / mm): 1850 x 1160 x 225 mm / 72.8 x 45.7 x 8.9 in

Net (lb / kg): 152.1lb/69kg
Brüt (lb / kg): 174.2lb/79kg

NRTL w/ CA,FCC-B w, DOE Energy Star,DOE EPEAT, CE EMC, LVD or CB, RoHS Green BOM, RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE

1. 3m power cord by ship area
2. Remote control with AAA battery
(new VS remote control)
3. 3m touch USB cable
4. Touch pen x 2 (a set)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8 (camera 2+2, wall mount 4)
10. HDMI cable 3m
11. AAA Battery x 2
12. Compliance statement

VPC35-W53-G1, VPC37-W53-G1
