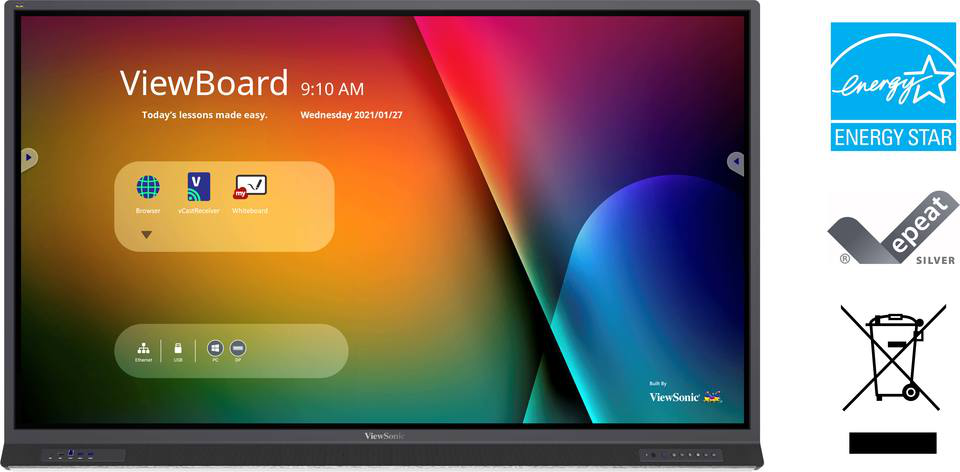

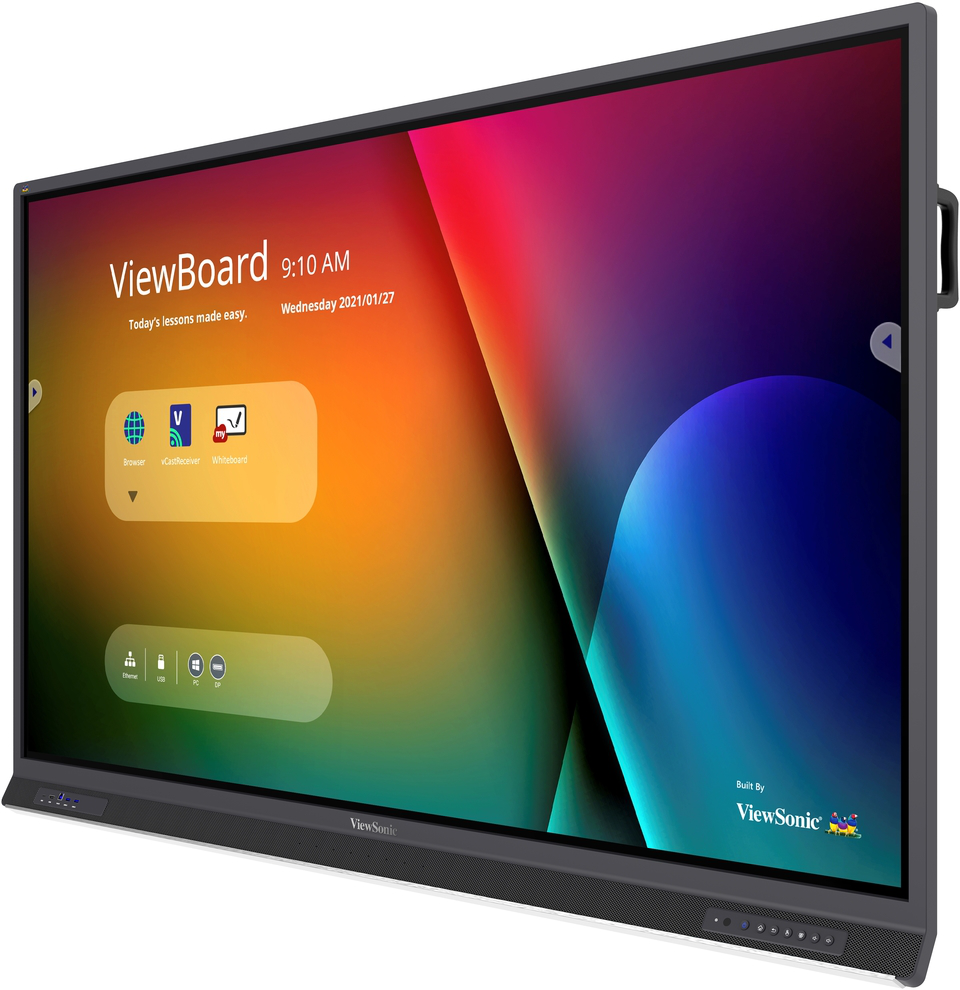

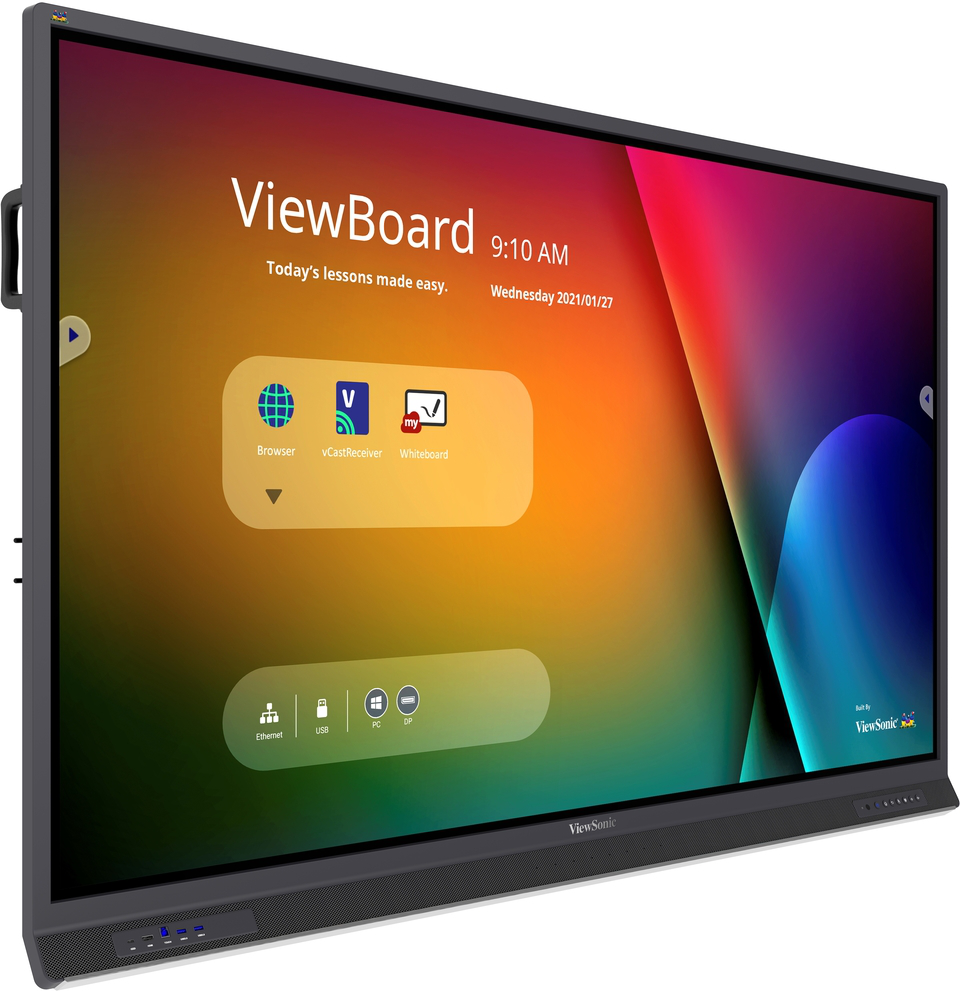

Viewsonic ViewBoard IFP7552-1B

Panel Boyutu: 75"
Panel Türü: TFT LCD Module with DLED Backlight.
Görüntü Alanı (mm): 1649.644(H) x 927.936(V)
En Boy Oranı: 16:9
Çözünürlük: UHD 3840x2160(Pixels)
Colors: 1.07B colors (10bit)
Parlaklık: 450 nits (typ.)
Kontrast Oranı: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Tepki Süresi: 8ms
İzleme Açıları: H = 178, V = 178 typ.
Arka Aydınlatma Ömrü: 50,000 Hours (Typ.)
Yüzey Kaplama: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating
Disclaimer: 50,000 hours backlight life at 8 hours of use per day

İşlemci: ARM Cortex A73*4
RAM: 8GB (IFP7552-1B)
Depolama: 64GB (IFP7552-1B)

Tip/ Teknoloji: UFT (Ultra Fine Touch) Technology
Dokunmatik Çözünürlük: 32767 x 32767
Dokunmatik Nokta: Windows: 33 points touch, Android: 20 points touch

HDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x1), x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
RGB / VGA: x1 (1920x1080 @60Hz)
DisplayPort: x1 (3840x2160 @60Hz)
Ses: x1 (PC audio in)
RS232: x1
OPS: module slot x 1
WiFi: module slot x 1

HDMI: x1 (on demand)
Ses: x1 (Earphone out)
SPDIF: x1 (optical)

RJ45​: x1

Tip A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)
Tip B: x2, for touch
Tip C: x1 (USB3.0, DP1.2 Alt Mode, 100M Ethernet, 60W PD)

15W x 2 + 15W x 1 subwoofer

built-in 8-array microphone

Yes

Android 11

Temel Not Alma Yazılımı: myViewBoard WhiteBoard for Android
Profesyonel Not Alma Yazılımı: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display

All-in-one USB port: USB 3.0 x 4
IFP ve slot cihaz arasında kolay LAN paylaşımı: 10/100/1000M for Android and PC
Light Sensor: Yes

Voltaj: 100-240VAC +/- 10% Wide Range
Tüketim: 159.4W (Typ.) < 0.5 W (""Off"")

Duvara Monte (VESA® ): 800 x 400

Sıcaklık (º C): 0°C to 40°C
Nem: 20% ~ 80% RH Non-Condensing

Fiziksel (inç / mm): 1720.1 (W) x 1069.6 (H) x 118.4 (D) mm, 67.72 (W) x 42.11 (H) x 4.66 (D) inch
Paket (inç / mm): 1880 (W) x 1160 (H) x 280 (D) mm, 74.02 (W) x 45.67 (H) x 11.02 (D) inch

Net (lb / kg): 125.22 lb / 56.8 kg
Brüt (lb / kg): 158.95 lb / 72.1 kg

cTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP, BSMI

1. Power cable(3 meters)  2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. 13. AAA Battery x 2

VPC12 & VPC25/27-O & VPC25/27-O-B series
