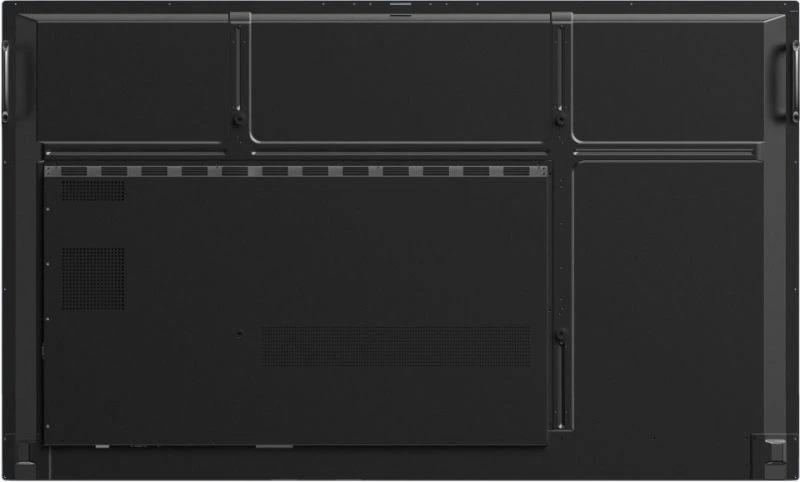

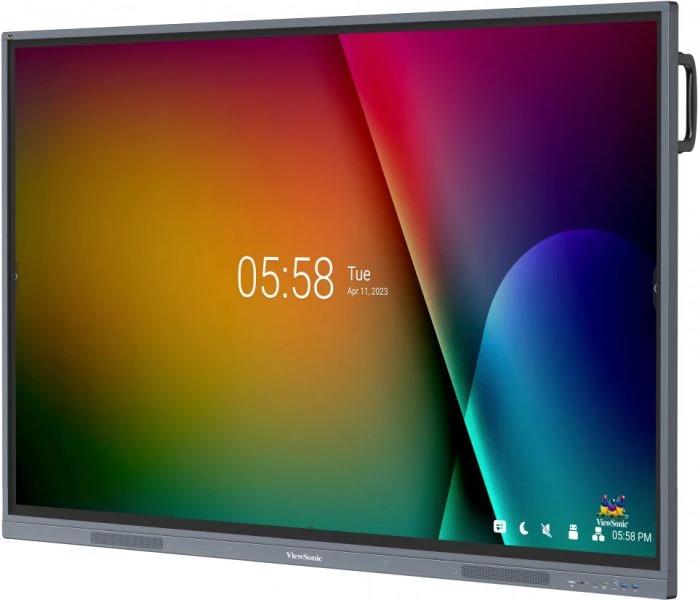

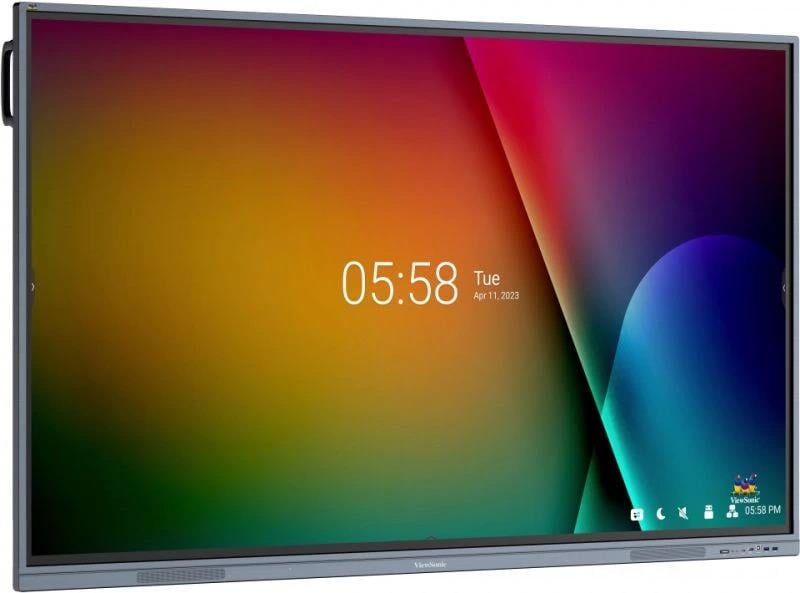

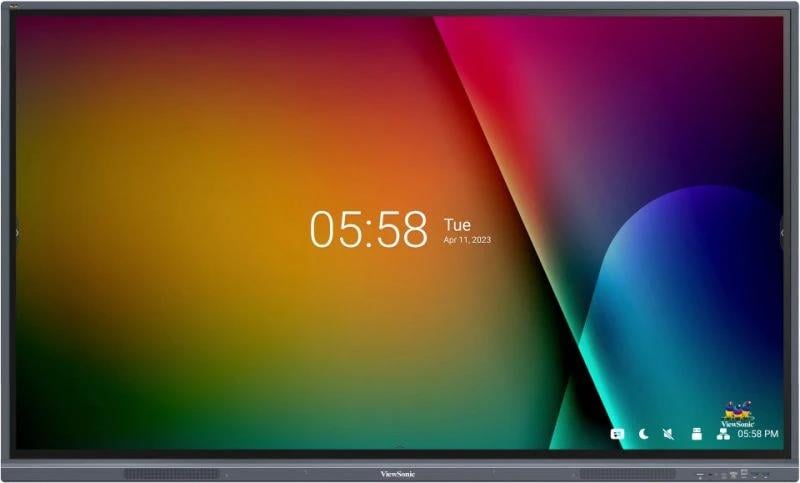

Viewsonic ViewBoard IFP7533

Panel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight. IPS
Display Area (mm): 1649.664(H) × 927.936(V) (74.6” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Brightness: 350 nits
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 8ms
Viewing Angles: H=178, V=178
Backlight Life: 50,000 Hours (8 hours of use per day)
Surface Treatment: Hardness: 7H Anti-glare coating
Orientation: Landscape

Processor: Quad-core ARM Cortex (A55*4 )
RAM: 4GB DDR4
Storage: 32 GB

Type/ Tech: Ultra Fine Touch Technology
Touch Point: 40 points touch

HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)

HDMI: HDMI 2.0 x1
Audio: x1
SPDIF: x1

RJ45: x2

Type A: USB3.0 x4 (Front x2, Rear x2)；
USB2.0 x1
Type B: x2 (Front x1, Rear x1)
Type C: Frontx1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)

16W x 2

Yes

Android 11

Basic Annotation Software: myViewBoard Whiteboard
Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes

All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes

Voltage: 100-240V AC
Consumption: On:106W; Off: ≤ 0.5W

Wall Mount (VESA® ): 800x400

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

Physical (inch / mm): 1709 x 1020 x 88 mm / 67.3 x 40.2 x 3.5 in
Packaging (inch / mm): 1863 x 1140 x 225 mm / 73.3x 44.9 x 8.6 in

Net (lb / kg): 104.3lb/47.3kg
Gross (lb / kg): 133.5lb/60.55kg

FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS

1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m

VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
