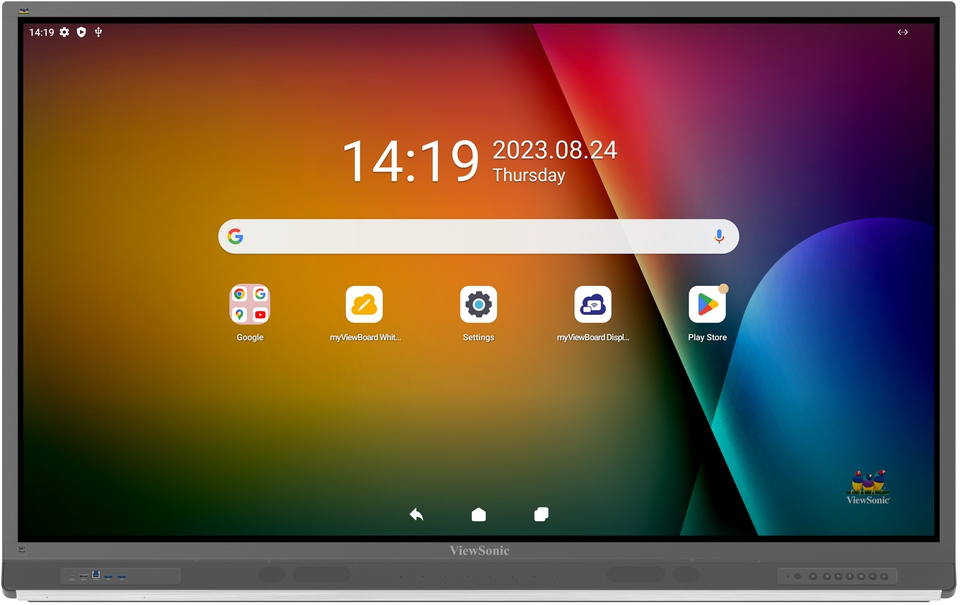

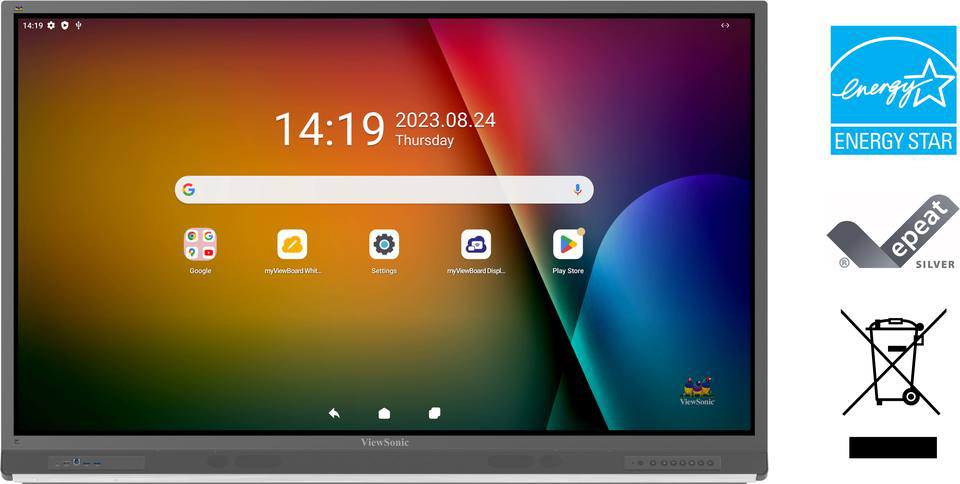

Viewsonic ViewBoard IFP6552-2F

Panel Boyutu: 65"
Panel Türü: TFT LCD Module with DLED Backlight, VA
Görüntü Alanı (mm): 1428.48(H) x 803.52 (V) (64.5” diagonal)
En Boy Oranı: 16:9
Çözünürlük: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Parlaklık: 350 nits (typ)
Kontrast Oranı: 4000:1(Typ.)
5000:1(Min. with DCR enabled)
Tepki Süresi: ≤7ms
İzleme Açıları: H = 178, V = 178 typ.
Arka Aydınlatma Ömrü: 50,000 hrs (typ).
Yüzey Kaplama: Hardness: 7H. Anti-glare coating
Yön: Landscape

İşlemci: Octa-Core CPU (A73*4 + A53*4)
RAM: 8GB
Depolama: 64GB

Tip/ Teknoloji: UFT (Ultra Fine Touch) Technology
Dokunmatik Çözünürlük: 32767 x 32767
Dokunmatik Nokta: Windows: 40 points touch, Android: 20 points touch

HDMI: x3 ( Frontx1:HDMI2.0 with CEC ; Rearx2:HDMI2.1 with CEC/ARC & HDMI 2.0 with CEC)
RGB / VGA: x1
DisplayPort: x1
Ses: x1 (PC audio in)
RS232: x1
OPS: module slot x 1

HDMI: x1
Ses: x1 (Earphone out)
SPDIF: x1

RJ45​: x2

Tip A: USB3.0 x 4 (Front x 2; Rear x 2 )
USB 2.0x1 (Rear)
Tip B: USB 3.0 x3(Front x1; Rear x 2)
Tip C: x3 (Front x1 with USB3.0, DP1.2, Ethernet 100M, PD 65W; Rear x1 with USB3.0, DP1.2, Ethernet 100M, PD 100W; Rear x1 with USB3.0 data only)

15W x 2 front soundbar + 15W x 1 subwoofer

built-in 8-array microphone

Yes

Android 13

Temel Not Alma Yazılımı: myViewBoard WhiteBoard for Android
Profesyonel Not Alma Yazılımı: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: myViewBoard Display, vCast

All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
IFP ve slot cihaz arasında kolay LAN paylaşımı: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes

Voltaj: 100-240VAC +/- 10% Wide Range
Tüketim: 91.41W (Energy Star) / Off: <0.5W

Duvara Monte (VESA® ): 500 x 400

Sıcaklık (º C): 0°C to 40°C
Nem: 20% ~ 80% RH non-condensing

Fiziksel (inç / mm): 1502.7 x 948.66 x 122.18 mm / 59.161 x 37.349 x 4.81 in
Paket (inç / mm): 1618 x 1060 x 225 mm / 63.7 x 41.7 x 8.9 in

Net (lb / kg): 130.1 lb/59kg
Brüt (lb / kg): 149.9lb/68kg

NRTL w/ CA,FCC-B w, DOE Energy Star,DOE EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE

1. 3m power cord by ship area
2. Remote control with AAA battery
(new VS remote control)
3. 3m touch USB cable
4. Touch pen x 2 (a set)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8 (camera 2+2, wall mount 4)
10. HDMI cable 3m
11. AAA Battery x 2
12. Compliance statement

VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
