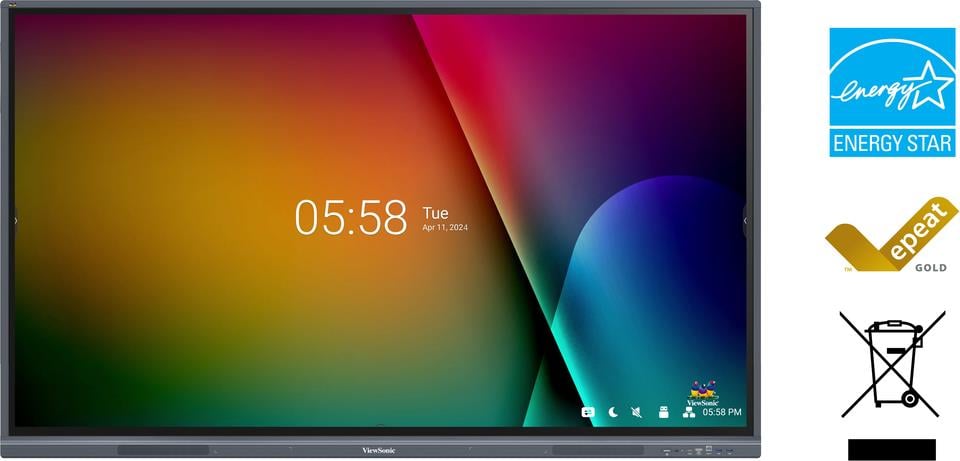

Viewsonic ViewBoard IFP6533-G

Panel Boyutu: 65"
Panel Türü: TFT LCD Module with DLED Backlight. IPS
Görüntü Alanı (mm): 1428.48(H) × 803.52(V) (64.5” diagonal)
En Boy Oranı: 16:9
Çözünürlük: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Parlaklık: 450 nits
Kontrast Oranı: 5000:1 (max. with DCR enabled)
Tepki Süresi: 8ms
İzleme Açıları: H=178, V=178
Arka Aydınlatma Ömrü: 50,000 Hours (8 hours of use per day)
Yüzey Kaplama: Hardness: 9H Anti-glare coating
Yön: Landscape

İşlemci: Quad-core ARM Cortex (A55*4 )
RAM: 8GB DDR4
Depolama: 128 GB

Tip/ Teknoloji: Ultra Fine Touch Technology
Dokunmatik Nokta: 40 points touch

HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz)
RGB / VGA: x1
Ses: x1
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-WIFI-004/VSB-050)

HDMI: HDMI 2.0 x1
Ses: x1
SPDIF: x1

RJ45​: x2

Tip A: USB3.0 x4 (Front x2, Rear x2)；
USB2.0 x1
Tip B: x2 (Rear x1 + Front x1)
Tip C: Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)

20W x 2

Yes

Android 13

Temel Not Alma Yazılımı: myViewBoard Whiteboard
Profesyonel Not Alma Yazılımı: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display
Dokunmatik Geri Bildirimli Kablosuz Sunum: ViewBoard Cast: Yes

All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
IFP ve slot cihaz arasında kolay LAN paylaşımı: 10/100M for Android & Slot-in PC
Light Sensor: Yes

Voltaj: 100-240V AC
Tüketim: On:99W ; Off: ≤ 0.5W

Duvara Monte (VESA® ): 600*400

Sıcaklık (º C): 0°C to 40°C
Nem: 20% ~ 80% RH non-condensing

Fiziksel (inç / mm): 1488 x 897 x 88 mm / 58.6 x 35.3 x 3.5 in
Paket (inç / mm): 1628x1005x208 mm / 64.1x 39.6x 8.2in

Net (lb / kg): 77.1lb/34.95kg
Brüt (lb / kg): 98.5 lb/44.7kg

FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM, & RoHS DoC, ErP, REACH SVHC List, & DoC, EEL, WEEE, BSMI,BIS

1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m

VPC35-W53-G1/VPC37-W53-G1
