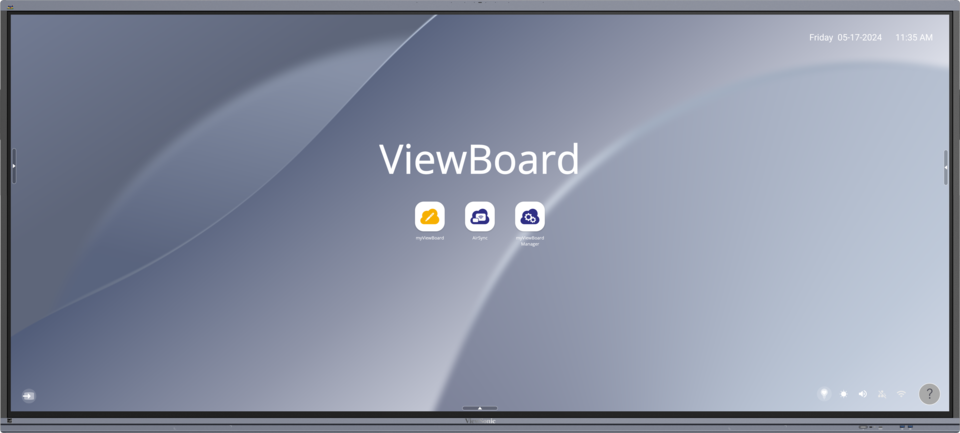

Viewsonic ViewBoard IFP105UW

Panel Boyutu: 105"
Panel Türü: TFT LCD Module with DLED Backlight, VA
Görüntü Alanı (mm): 2449.92(H) x 1033.56 (V) (104.6”diagonal)
En Boy Oranı: 21:9
Çözünürlük: WUHD 5120x2160(Pixels)
Colors: 1.07B colors
Parlaklık: 400 nits (typ.)
Kontrast Oranı: 4000:1(Typ.)
5000:1(Max. with DCR enabled)
Tepki Süresi: 6.5ms
İzleme Açıları: H = 178, V = 178 (Typ.)
Arka Aydınlatma Ömrü: 30,000 Hours (Min.)
Yüzey Kaplama: Panel Hard Coating 3H
Glass Anti-Glare 7H
Çerçeve: 19.5/19.5/29.8/41.2 mm
Yön: Landscape

İşlemci: Octa-Core CPU (A76*4 + A55*4)
RAM: 8GB LPDDR
Depolama: 128GB eMMC

Tip/ Teknoloji: IR Recognition
Dokunmatik Çözünürlük: 32767 x 32767
Dokunmatik Nokta: Windows: 40 Android: 20

HDMI: x4 (Rear x3 :HDMI 2.0 with CEC; Rear x 1 HDMI 2.1 with CEC)
DisplayPort: 1
Ses: 1
MIC(Mikrofon): Built-in 8 Array Microphone
RS232: 1
OPS: X1 OPS Slot
WiFi: X1 Module Slot

HDMI: 1
Ses: 1
SPDIF: 1

RJ45​: X2 (inx1；outx1；1000m for Android/PC；100m for type-C)

Tip A: USB2.0 x 1 (Bottom) (for FW upgrade)
USB3.0 x 6 (Top x 2 + Rear x 2 + Front x2 ), all support Smart USB
Tip B: 3 (Bottom x 1; Rear x 2)
Tip C: 2 [Rearx1: PD65W(65W with OPS, 100W without OPS) + DP1.2 + Data + 10M/100M sharing ; Front x1:PD15W + DP1.2 + Data + 10M/100M sharing]

16W x 2 + 15W x 1 subwoofer

Yes

Android 13

Dokunmatik Geri Bildirimli Kablosuz Sunum: ViewBoard Cast: Single screen sharing with Chromecast or up to 4 devices with vCast Sender or Airplay. No additional download is required to cast using Airplay or Chromecast.

All-in-one USB port: Yes
Tek Tıkla Bulut Sürücüsüne: Yes
IFP ve slot cihaz arasında kolay LAN paylaşımı: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: x1

Voltaj: 100-240VAC +/- 10% Wide Range
Tüketim: On: 176W(Energy Star) / Off: <0.5W

Duvara Monte (VESA® ): 1000 x 400

Sıcaklık (º C): 0°C to 40°C
Nem: 20% ~ 80% RH non-condensing

Fiziksel (inç / mm): 98.71 x 44.49 x 4.06 in / 2507.2 x 1130.1 x 103.2mm
Paket (inç / mm): 105.04 x 51.38 x 11.02 in / 2668 x 1305 x 280 mm

Net (lb / kg): 201.5lb/ 91.4kg
Brüt (lb / kg): 255.9lb/116.1kg

cTUVus,FCC/ICES003, LBL(low blue light filter), FF(Flicker free), CE EMC, CB, RoHS Green BOM, RoHS DoC, ErP, REACH SVHC List, DoC, EEL, WEEE, BSMI

  1. 3m power cord by ship area
 2. USB-type C cable 1.8m x 1 (USB-IF certified)
 3. Remote control with AAA battery x 2
 4. 3m touch USB cable (USB 2.0)
 5. Touch pen x 2  (VB-PEN-002)
 6. Quick Start Guide with Compliance statement
 7. RS232 adapter
 8. Clamp x 5
 9. Camera Plate x 2 (1 for VB-CAM-201, 1 for UMB202)
 10. Screw x 11 (2+4+1 for camera , 4 for wall mount)
 11. HDMI cable 3m (HDMI LA certified)

VPC3X, VPCF5-2A
