ÜRÜNE GENEL BAKIŞ

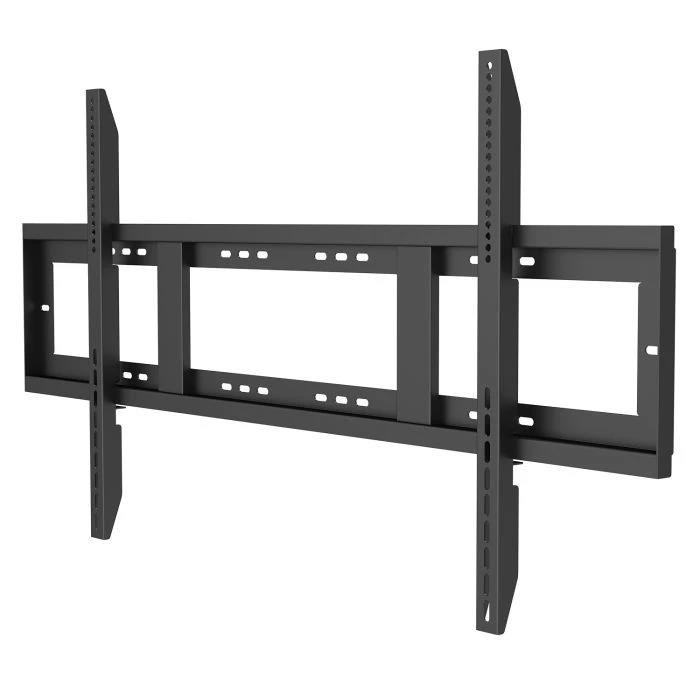

The VB-WMK-003 is designed to mount 55" to 105" ViewBoard and Presentation Display

Ekranınızı Genişletin

Monte edilen ve kurulan ekranlar duvardan yalnızca 1,8 inç uzanır.

VESA Yapılandırmaları

VESA modellerini destekler: 200 x 200 mm ila 1000 x 600 mm

Güvenli Yerleştirme

Güçlendirilmiş bir güvenlik çubuğu, ekranınızın duvara sıkıca sabitlenmesini sağlar

TEKNIK ÖZELLIKLER

• Mounting Pattern Max. Mount

  up to 1000x600mm

• Screw Type

  M5, M8

• Malzeme

  Iron

• Dimension (WxHxD)

  Fiziksel (GxYxD): 1260×650×45mm / 49.6x 25.6 x 1.77 in
  Ambalaj (GxYxD): 1340×358×60mm / 52.75 x 14.1 x 2.36 in

• Weight (Net)

  Net: 6.8kg / 15 lb (Support Max. Weight: 150 kg)
  Brüt: 7.6 kg / 16.76lb

• Support Flat Panel Size

  55"~105"

• Min. Distance To The Wall

  45 mm / 1.77 in

• Included Accessories

  1.Expansion rubber: Φ12×60mm, PMMA, 10 PCS (8 pcs for installation, 2 pcs for spare)
  2.Screw to fix IFP on wall mount：M8×25mm, 6 PCS (4 pcs for installation, 2 pcs for spare)
  3.Screw to fix wall mount on wall: M8.0×60mm, 8.8H, 10 PCS (8 pcs for installation, 2 pcs for spare)
  4.Screw for spare: M5×15mm, 4 pcs (2 pcs for installation, 2 pcs for spare)
  5.Washer：Φ 20× Φ 8.5× 1.5mm, 10 PCS (8 pcs for installation, 2 pcs for spare)
  6.Guide X 1
