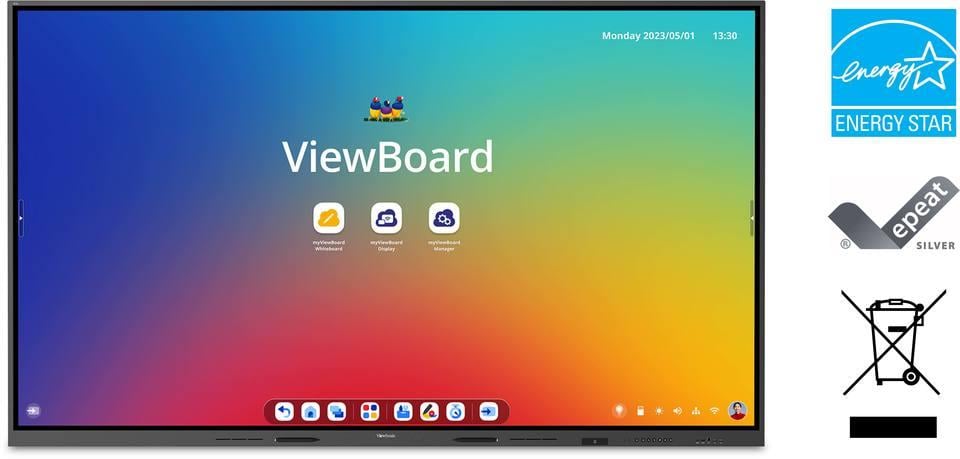

Viewsonic IFP110

Panel Boyutu: 110"
Panel Türü: TFT LCD module with DLED backlight
Görüntü Alanı (mm): 2436.48 (H) × 1370.52 (V)
En Boy Oranı: 16:9
Çözünürlük: UHD 3840x2160(Pixels)
Colors: 1.07G colors
Parlaklık: 400 nits (typ.)
Kontrast Oranı: 1200:1(Typ.)
5000:1(Min. with DCR enabled)
Tepki Süresi: 8ms
İzleme Açıları: H = 178, V = 178 (Typ.)
Arka Aydınlatma Ömrü: 50,000 Hours (Min.)
Yüzey Kaplama: Hardness: 7H, Anti-glare coating
Yön: Landscape

İşlemci: Octa-Core CPU (A73*4 + A53*4)
RAM: 8GB LPDDR
Depolama: 128GB eMMC

Tip/ Teknoloji: IR Recognition
Dokunmatik Çözünürlük: 32767 x 32767
Dokunmatik Nokta: Windows: 40 Android: 20

HDMI: x3 (Front x 1 :HDMI 2.0; Rear x 2:HDMI 2.0 x 1, HDMI 2.1 support ARC)
RGB / VGA: 1
DisplayPort: 1
Ses: 1 (3.5mm phone jack)
RS232: 1
OPS: X1 OPS Slot
WiFi: X1 Module Slot

HDMI: 1
Ses: 1 (Earphone Out)
SPDIF: 1

RJ45​: X2 (in x 1；out x 1)

Tip A: USB2.0 x 1 (Rear x 1) (for FW upgrade)
USB3.0 x 4 (Rear x 2 + Front x2 )
Tip B: 3 (Front x1, Bottom x 1, Rear x 1)
Tip C: 3 [Rear x 2: 1x (PD100W + DP1.2 + Touch + USB 3.0 & USB 2.0 ; 1x(USB 3.0 only) ; Front x 1(PD65W + DP1.2 + Touch + 100M sharing, USB 3.0 & USB 2.0)]

15W x 2 + 20W x 1 subwoofer

8-array Microphone

Yes

Android 13

Temel Not Alma Yazılımı: myViewBoard
Profesyonel Not Alma Yazılımı: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: Display
Dokunmatik Geri Bildirimli Kablosuz Sunum: ViewBoard Cast: Yes
ViewSonic Launcher: Yes

All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
IFP ve slot cihaz arasında kolay LAN paylaşımı: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes

Voltaj: 100-240VAC +/- 10% Wide Range
Tüketim: On:175.46W ; Off: ≤ 0.5W

Duvara Monte (VESA® ): 1000 x 800

Sıcaklık (º C): 0°C to 40°C
Nem: 20% ~ 80% RH non-condensing

Fiziksel (inç / mm): 98.70 x 58.06 x 3.81 in
2507.1 x 1474.8 x 96.8 mm
Paket (inç / mm): 105.7 x 64.17 x 12.2 in
2685 × 1630 x 310 mm

Net (lb / kg): 265lb/120.2kg
Brüt (lb / kg): 427.69lb/194kg

US NRTL w/ CA,FCC/ICES003, DOE Energy Star,DOE EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE,GOST-R / EAC, FF,LBL,ErP-Eco,SCIP,Annex I,Annex II,TPCH DoC,Packing waste,CA65 DoC

1. Remote Control with batteries
2. Quick Start Guide
3. Power Cables (3 M)
4. HDMI cable (3 M) x 1
5. USB touch cable 2.0 (3 M) x 1
6. WIFI Dongle (VB-WIFI-005) x 1
7. RS232 adapter (Female to Female)
8. Touch pen (Passive pen) (VB-PEM-002 x 2)
9. Retractable Stylus (PNT-001-B0/R0 x 1)
10. Clamp x 5
11. Camera plate x 1
12. Screws x 8 (Camera 2+2, Wall mount x4)
13. Compliance Statement

VPC-A31-O1
