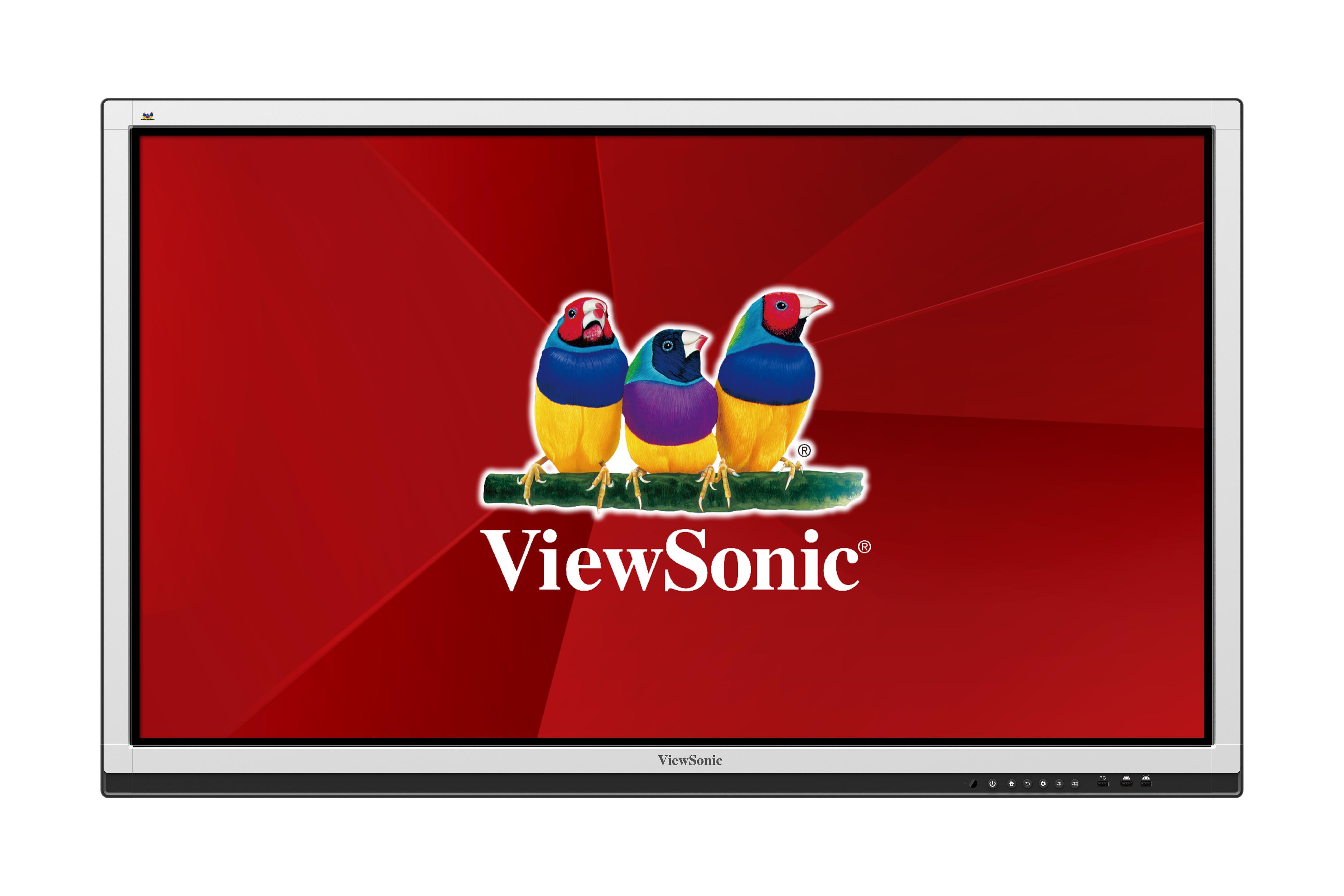

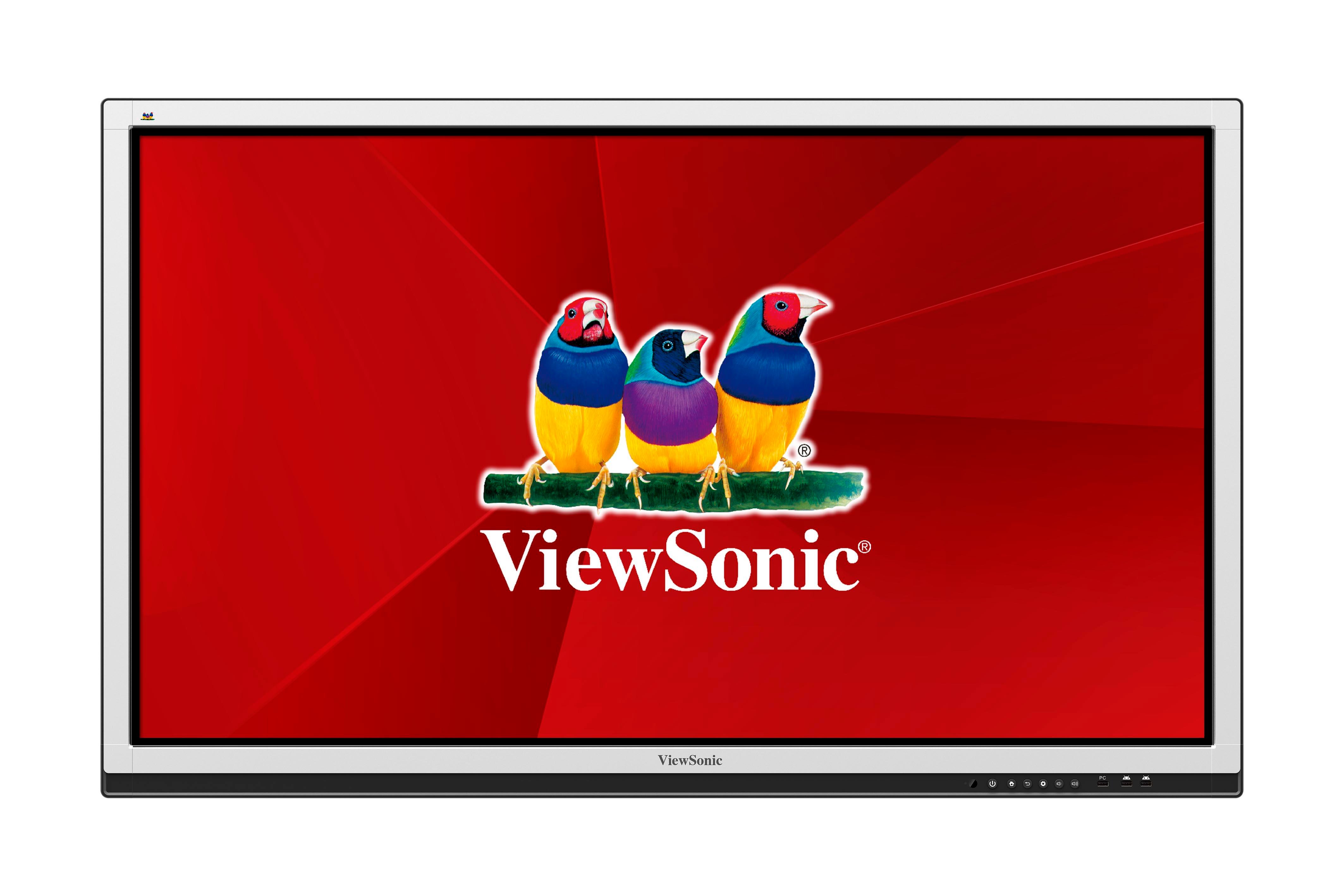

Viewsonic CDE7061T

Panel Boyutu: 70" (70'' diagonal)
Panel Tipi: TFT LCD Module with LED Backlight
Görüntü Alanı (mm): 1549.44(H) x 871.56(V)
Görüntü Oranı: 16:09
Çözünürlük: 1920 x 1080
Renk: 16.7 milyon renk (8bits-True)
Parlaklık: 350 nits (typ.)
Kontrast Oranı: 4000:1 (typ.)
Tepki Süresi: 5 ms
Görüş Açısı: H = 178, V = 178 (typ.)
Arka Aydınlatma: LED
Arka Aydınlatma Ömrü: 30,000 Saat (tipik)
Sertlik: Parlamasız, 7H sert panel

Tip: IR Recognition
Dokunmatik Çözünürlük: 32767 x 32767
Dokunmatik: 20 nokta dokunmatik 5 nokta yazma
Tepki Süresi: <15ms
Sistem: Windows 10/Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Ömür: 80,000 Saat

HDMI: x3
RGB / VGA: x3
Ses: x3 (3.5mm jack)
CVBS: x1
RS232: x1
OPS: x1

RGB / VGA: x1
Ses: x1 (Earphone out) (3.5mm jack)
SPDIF: x1

RJ45​: x1

Tip A: x3 (2.0), x1(3.0)
Tip B: x1 (for touch)

10W x2

İşlemci: ARM Cortex A9 Dual Core 1G Hz CPU
Grafik: RM Mali400 MP4
Hafıza: 1.5GB
Depolama: 8GB
Ağ: Dahili 10/100/1000M Adaptör

RGB: 1920x1080 @60Hz
CVBS: 480i
HDMI (1080p): 480i, 480p,720p, up to 1080

OSD Menü: Power, Home, Return, Setting, VOL-, VOL+
INPUT: PC, Embd Player, HDMI1, HDMI2, HDMI3, HDMI4, AV, VGA1, VGA2, VGA3,
VOLUME:1~100
BACKLIGHT: 1~10
AUDIO: Volume, Bass, Treble, Balance, Standard, Movie, Metting, Class, Mute
SCREEN: 4:3, 16:9, PTP
DISPLAY: Brightness, Contrast, Hue, Sharpness, Warm, Standard, Cold, Filter, Blue Light
ADJUST: H Position, V Position, Clock, Phase, Auto Adjust
Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Storage, Apps, Language&input, Date&time, Startup and shutdown, Floating Annotation Setting, Input Setting, About device
ANNOTATION: Annotation menu, Return, Main, Pen, Short cut, Zoon in/out, Screen capture, Clean, ViewBoard Lit, Folders, Browser, Settings, Close
VIEWBOARD LITE: Menu, Exit, Folders, Select, Pen, Eraser, Clean, Graphic, Cancel, Restore, Add page, Previous, Page, Next
INTERFACE:ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
Multimedya: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting
AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single, Volume
VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist, Volume

Voltaj: 100-240VAC +/- 10% Wide Range
Tüketim: "On" 222W (typ.)
"Off" < 0.5 W

Duvara Monte (VESA® ): 600 x 400
Screw: M8 x 25mm

Sıcaklık(º C): 32°F to 104°F (0°C to 40°C)
Nem: 10% ~ 90% non-condensing

Fiziksel (inch / mm): 1665 x 1015 x 98 mm / 65.6 x 40.0 x 3.9 in.
Ambalaj (inch / mm): 1803 x 1134 x 243 mm / 71.0 x 44.6 x 9.6 in.

Net (lb / kg): 55 kgs / 121.25 lbs
Brüt (lb / kg): 68 kgs / 149.91 lbs

Standard: FCC, cTUVus, Mexico, CE, BSMI, RCM, CCC

1. VGA kablosu (5 metre)
2. Güç kablosu (3 metre) x 4
3. Uzaktan kumanda
4. USB kablosu (5 metre)
5. Ses kablosu (5 metre)
6. Dokunmatik Kalem x 3
7. Kullanım Kılavuzu CD wizard
8. RS232 adaptörü

*Kutu içeriği ülkeye göre farklılık gösterebilir.
